1000A mccb Specificaitions
This mini circuit breaker is in accordance with these standards as follows:
Technical parameter
| Products Name | GASIM Moulded case circuit breaker (MCCB) | ||||||
| Advantages | compact , small size , high short-circuit breaking capacity ,no flashover | ||||||
| Suitable AC | 50HZ | ||||||
| Rated insulation Voltage | 750V | ||||||
| Rated working voltage | 690V or below | ||||||
| Rated Current | 25A~630A | ||||||
| Standard | IEC60947-1,GB/T-14048.1,IEC6.947-2 ,GB/T-14048.2,IEC6.9474,GB/T14047.4,IEC60947-5,GB/T14048.5 | ||||||
| Breaking capacity rating | N, H, L | ||||||
| Pole No. | 2P~4P | ||||||
| Warranty | 18 months | ||||||
| Release Type | Alarm contact ,instantancous relaese , double release | ||||||
| Certificates | CE,CCC,ISO9001 | ||||||
| Quality Guarantee | 1 Year | ||||||
2 . Catalogue
| Model |
Inm (A) |
In (A) |
Ue (V) |
Ui (V) |
Icu (KA) AC380V |
Ics (%Icu) |
Overall dimension |
Installation dimension |
Operating Performance (times) |
||||||
| L |
W 3P/4P |
H | A | B | Φd | Power-on | Power-off | ||||||||
| GSM9(NS)-100N | 100 |
25,40, 50, 63,80, 100 |
690 | 750 | 25 | 75% | 161 | 105/140 | 86 | 35 | 125 | 2-Φ6 | 1500 | 8500 | |
| GSM9 (NS)-100H | 70 | 75% | |||||||||||||
| GSM9 (NS)-100L | 150 | 75% | |||||||||||||
| GSM9 (NS)-160N | 160 |
125, 160 |
690 | 750 | 36 | 75% | 161 | 105/140 | 86 | 35 | 125 | 2-Φ6 | 1000 | 7000 | |
| GSM9 (NS)-160H | 70 | 75% | |||||||||||||
| GSM9 (NS)-160L | 150 | 75% | |||||||||||||
| GSM9 (NS)-250N | 250 |
200, 225, 250 |
690 | 750 | 36 | 75% | 161 | 105/140 | 86 | 35 | 125 | 2-Φ6 | 1000 | 7000 | |
| GSM9 (NS)-250H | 70 | 75% | |||||||||||||
| GSM9 (NS)-250L | 150 | 75% | |||||||||||||
| GSM9 (NS)-400N | 400 |
350, 400 |
690 | 750 | 45 | 75% | 255 | 140/185 | 110 | 45 | 200 | 4-Φ6 | 1000 | 4000 | |
| GSM9 (NS)-400H | 70 | 75% | |||||||||||||
| GSM9 (NS)-400L | 150 | 75% | |||||||||||||
| GSM9 (NS)-630N | 630 |
500, 600 |
690 | 750 | 45 | 75% | 255 | 140/185 | 110 | 45 | 200 | 4-Φ6 | 1000 | 4000 | |
| GSM9 (NS)-630H | 70 | 75% | |||||||||||||
| GSM9 (NS)-630L | 150 | 75% | |||||||||||||

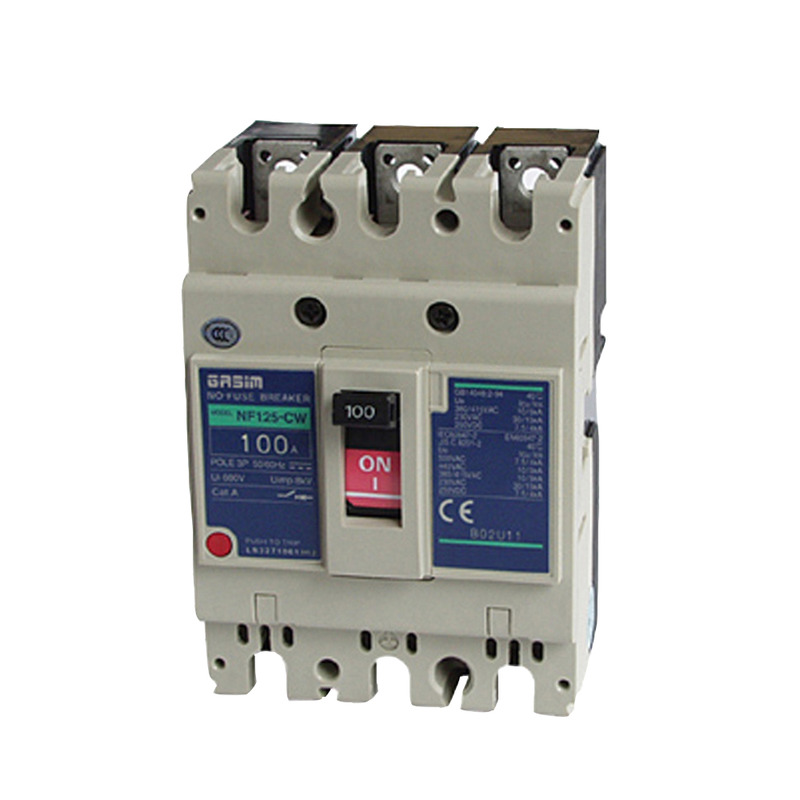

3.Product Show
